Design Concepts Final Project

Product Development Process Project/Technical Writing Sample
Click here to download the report.


This is a portion of the final project involved in Design Concepts. Our task was to find a problem, and come up with various, "out of the box" solutions, and use various product development and evaluation tools to decide on, and design the best available solution.

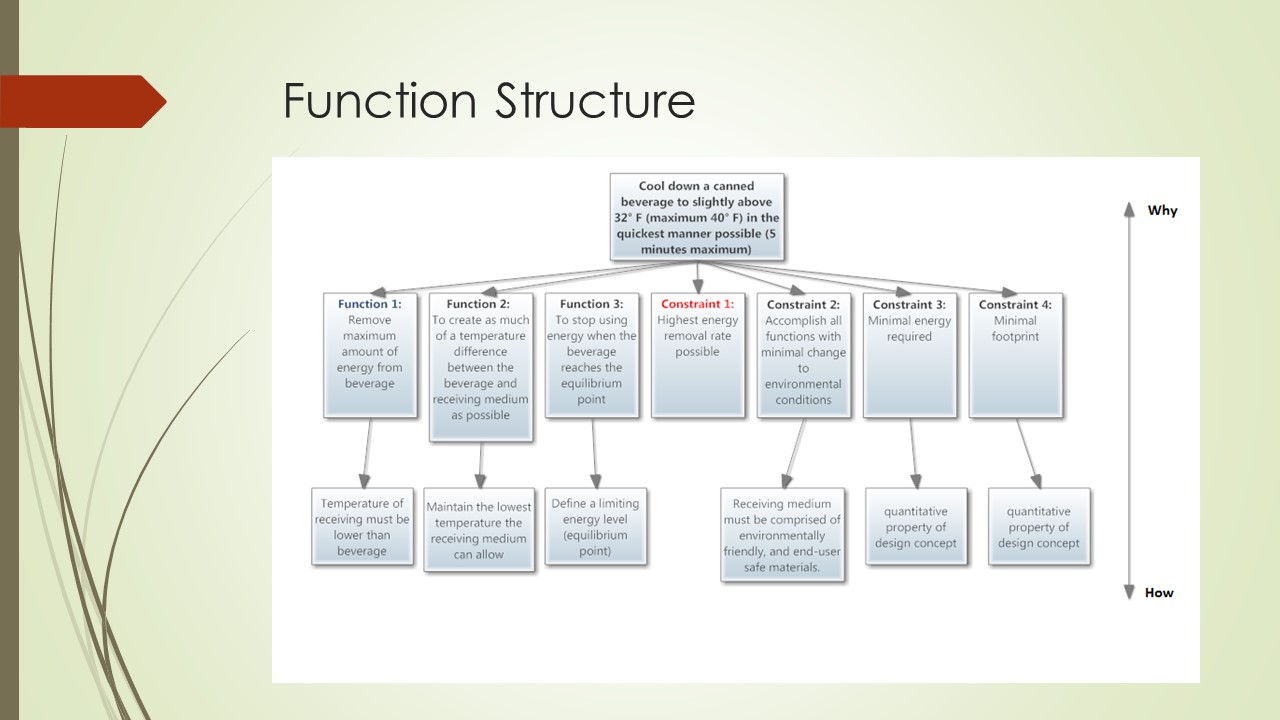

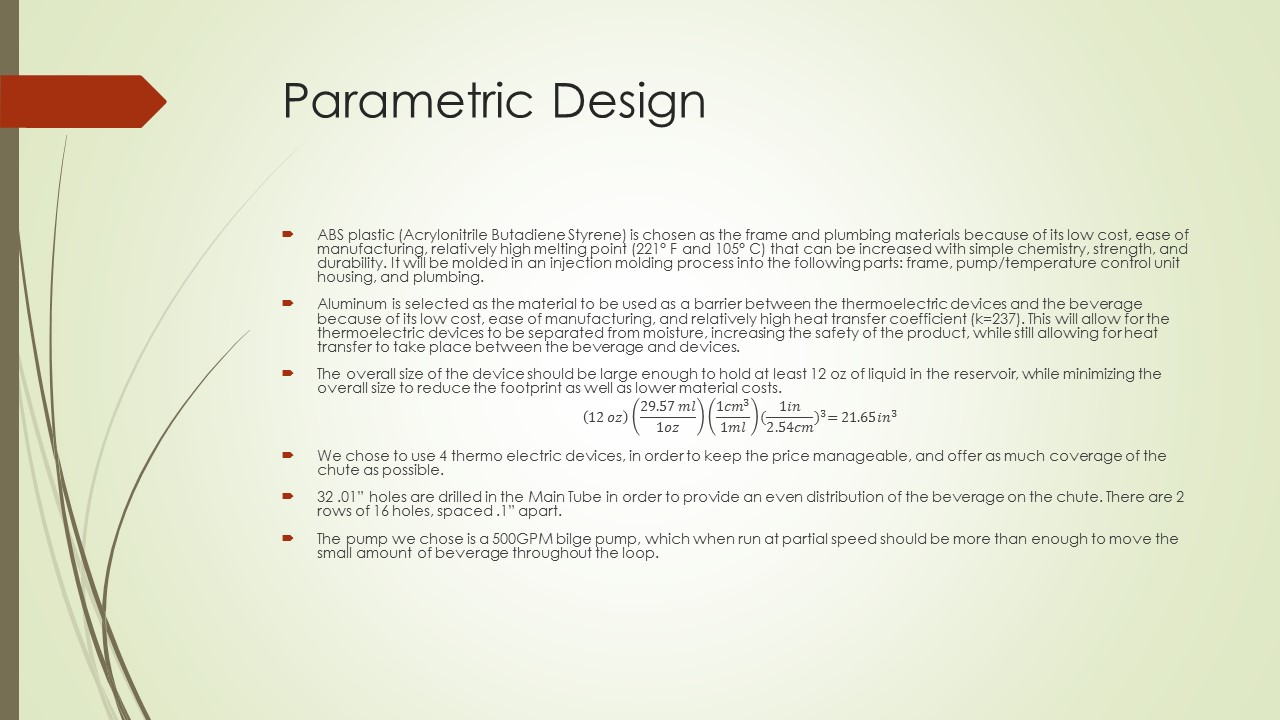

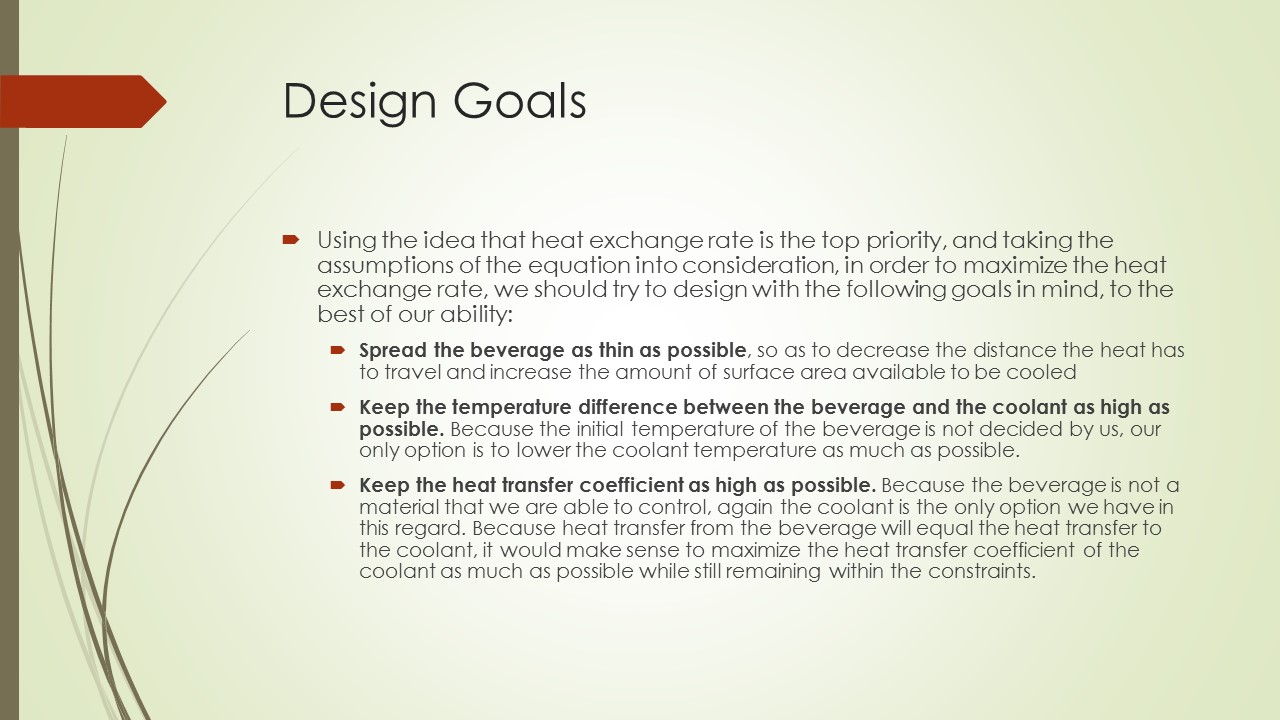

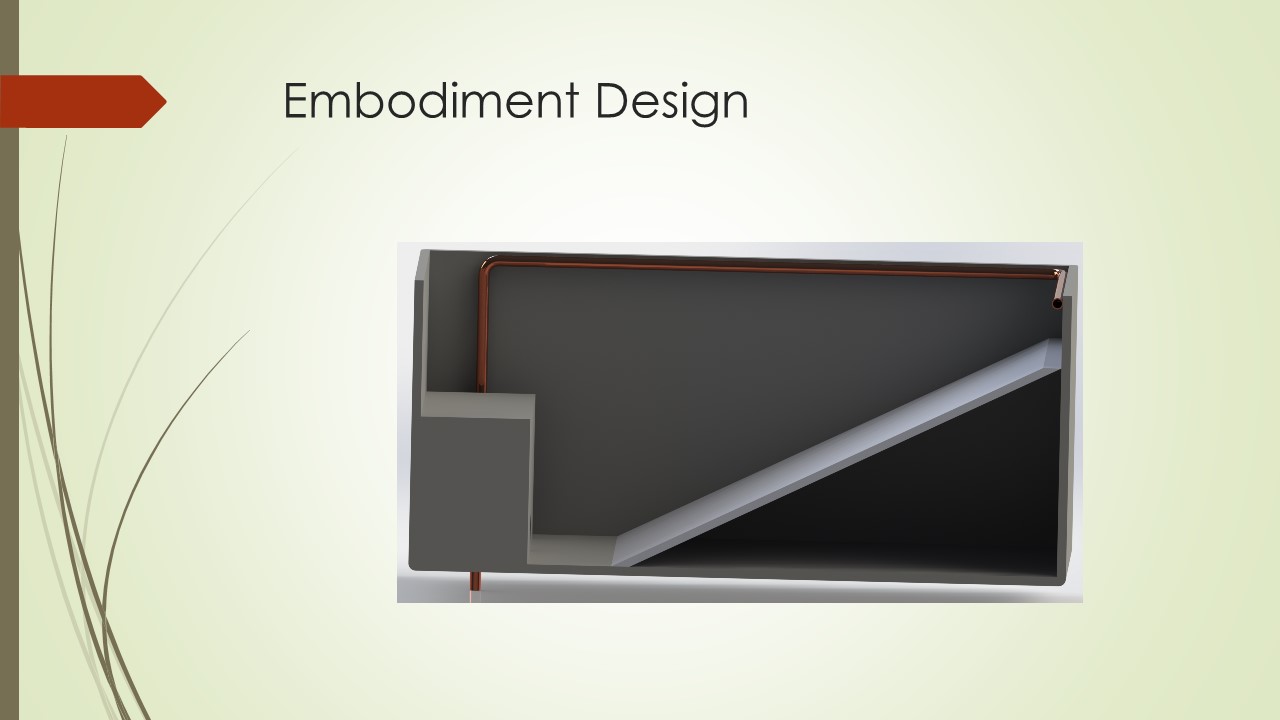

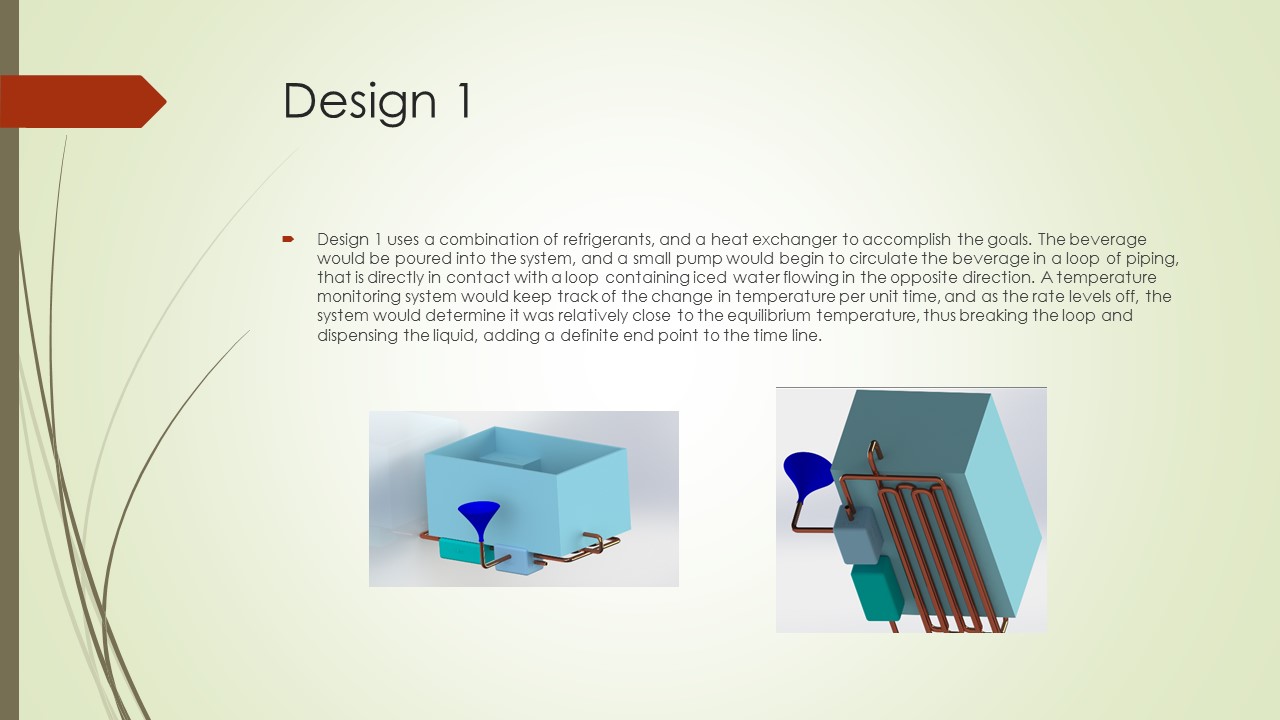

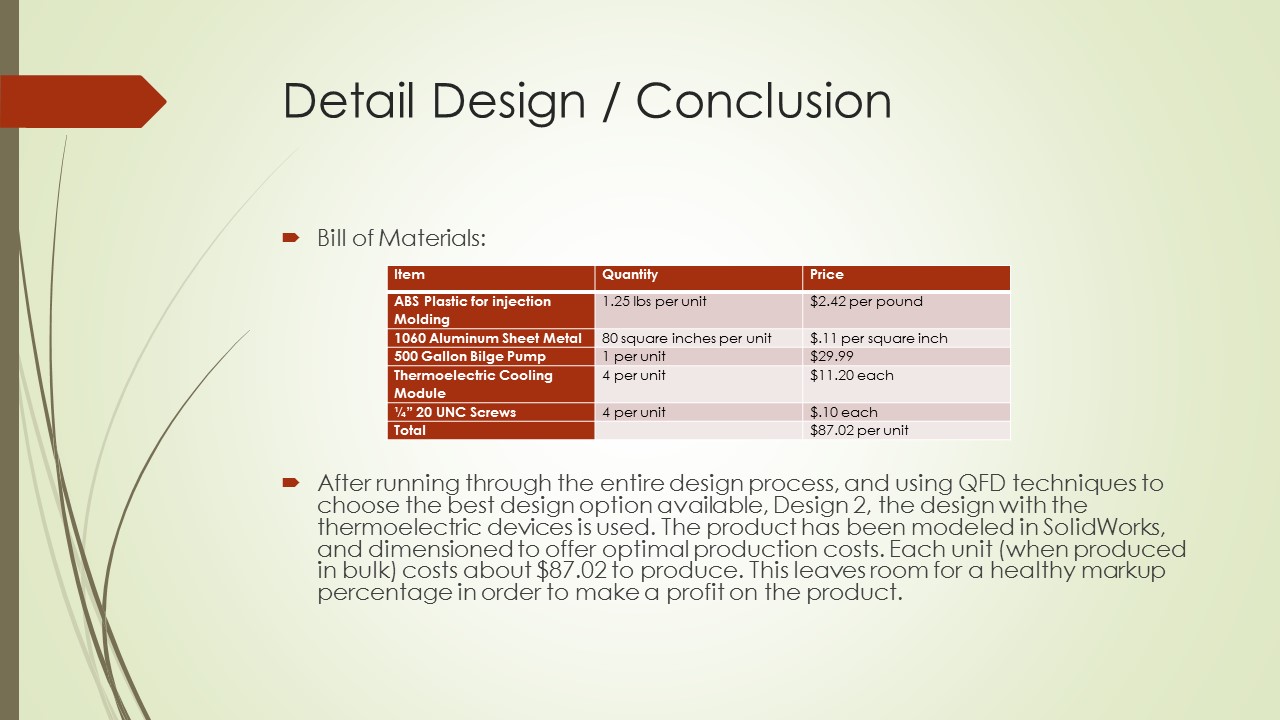

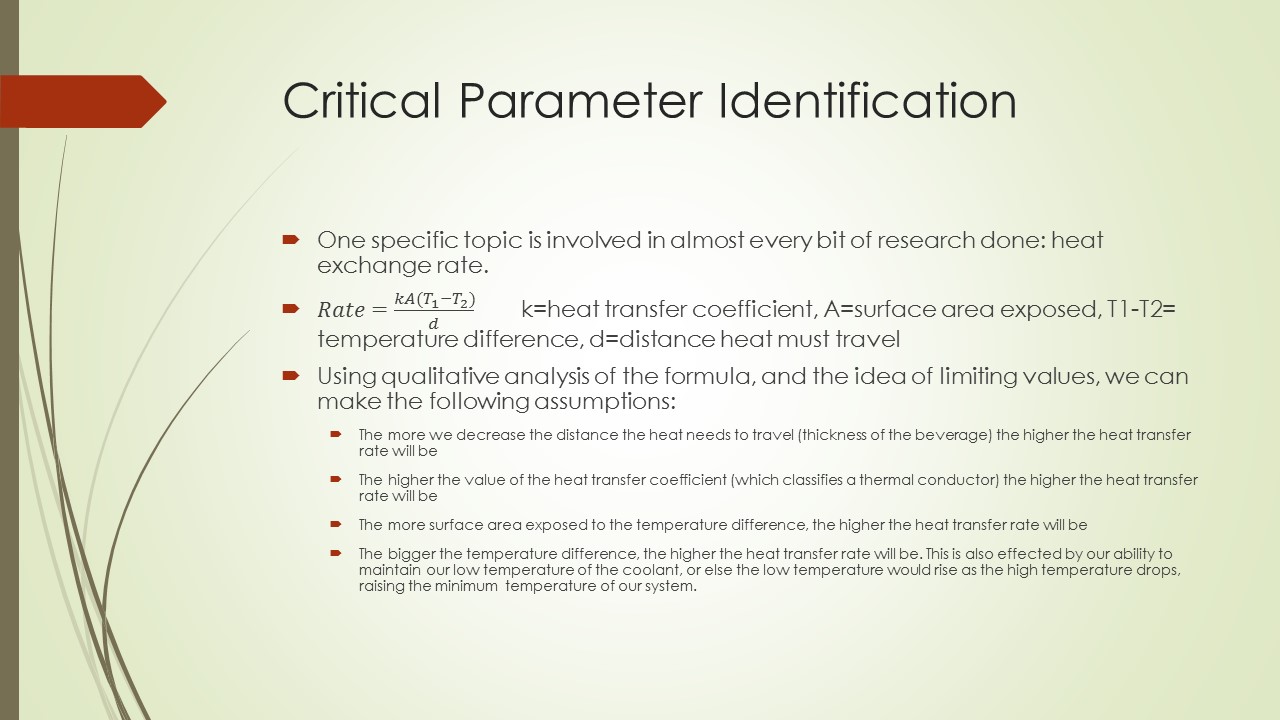

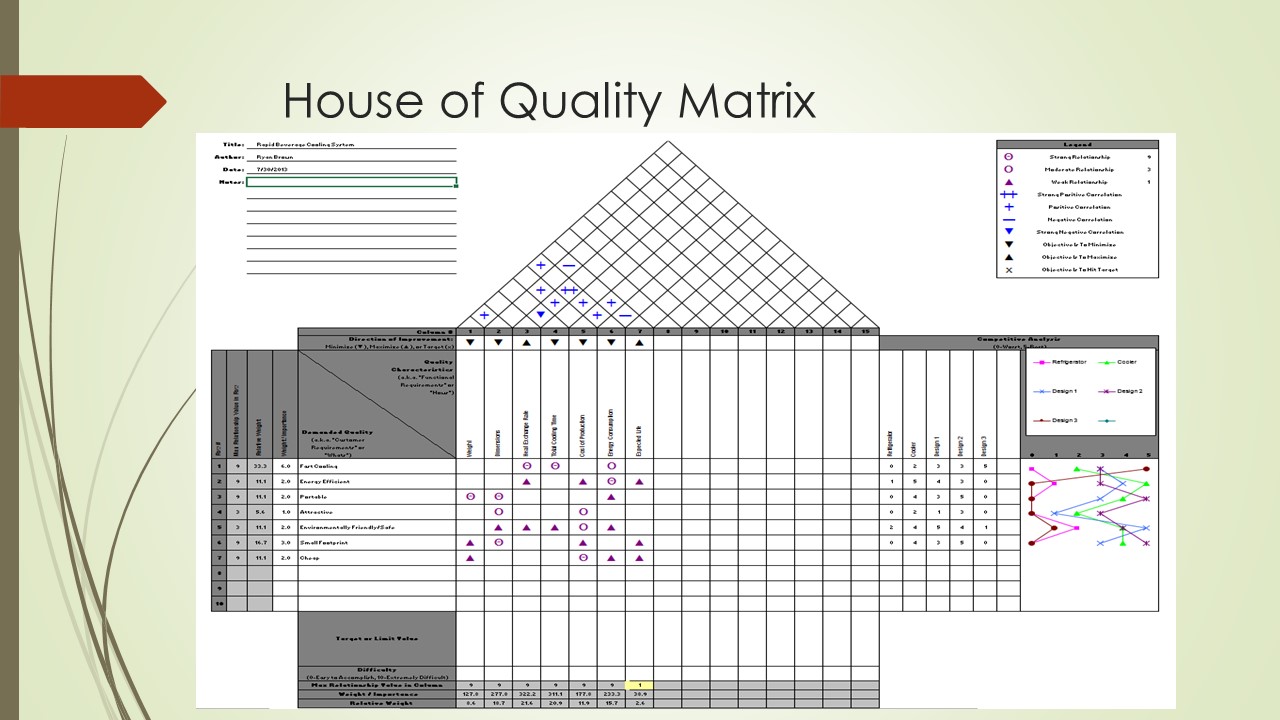

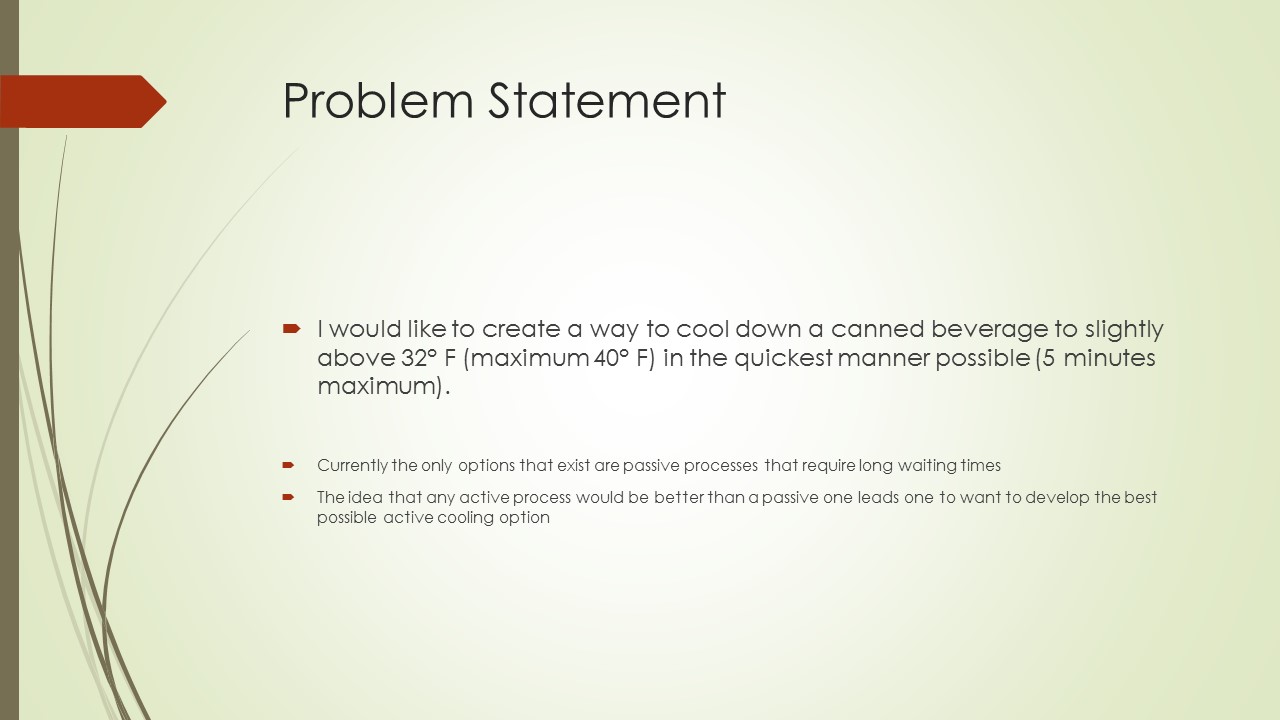

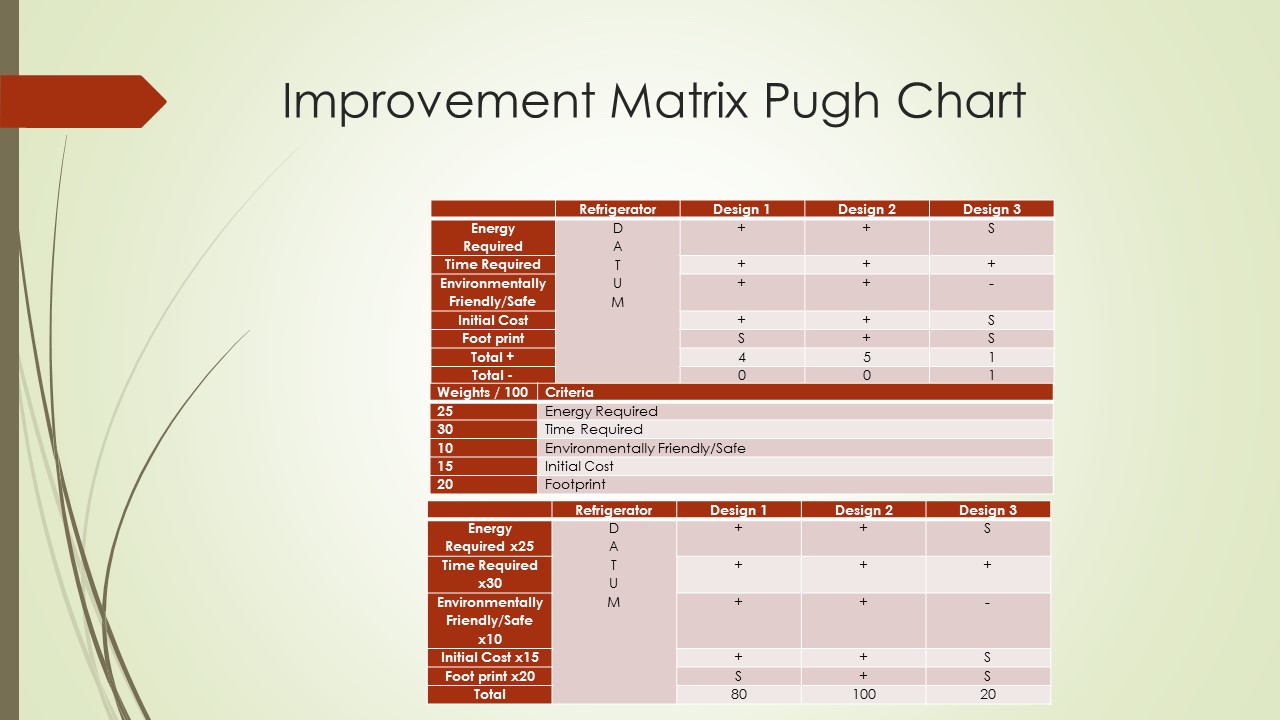

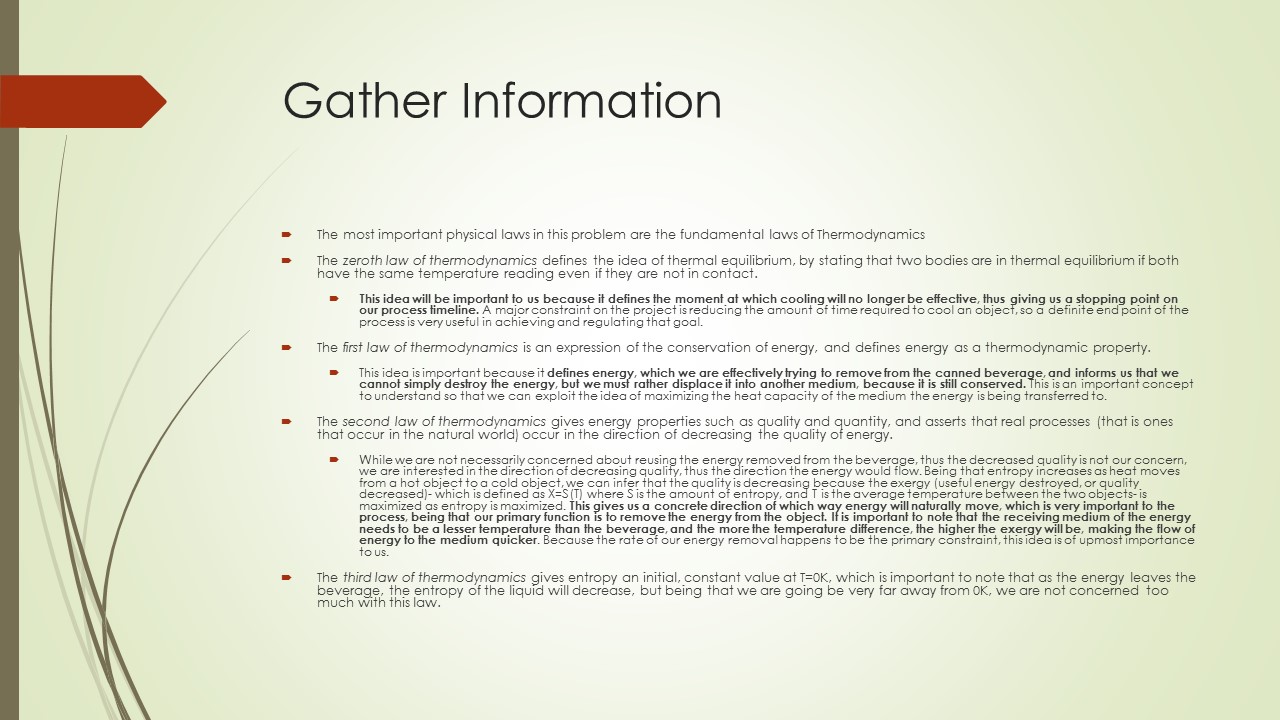

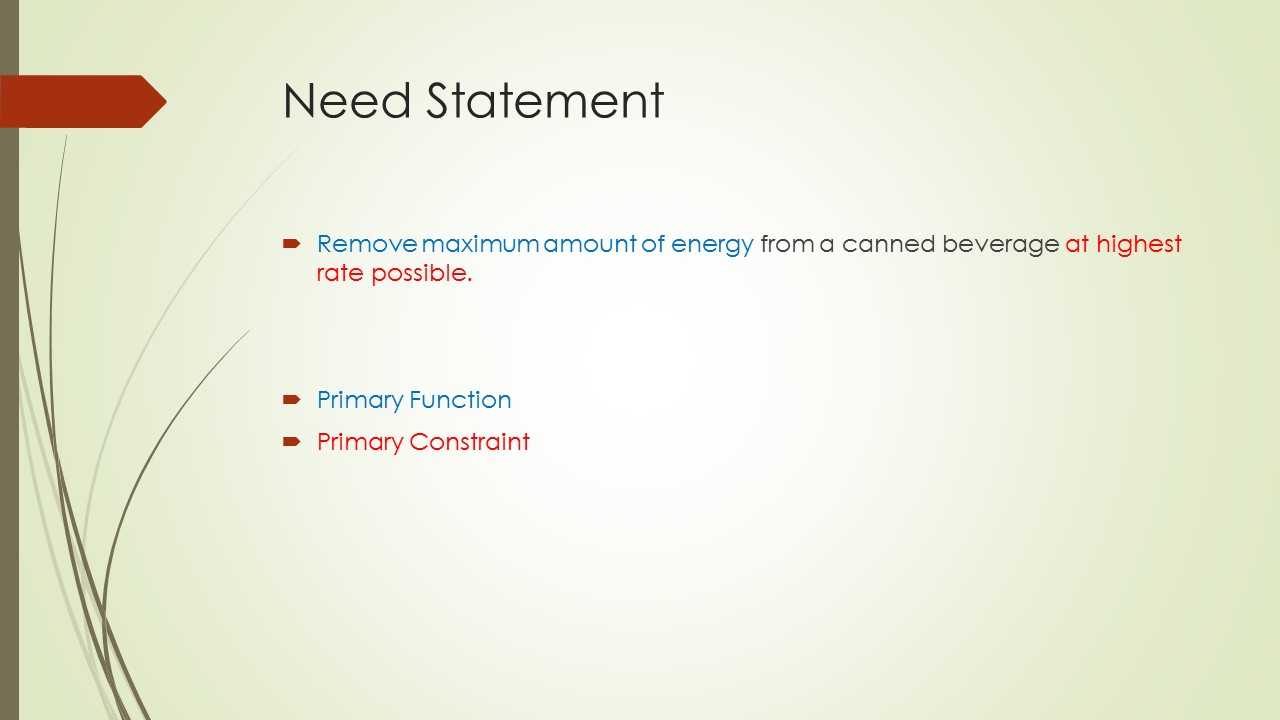

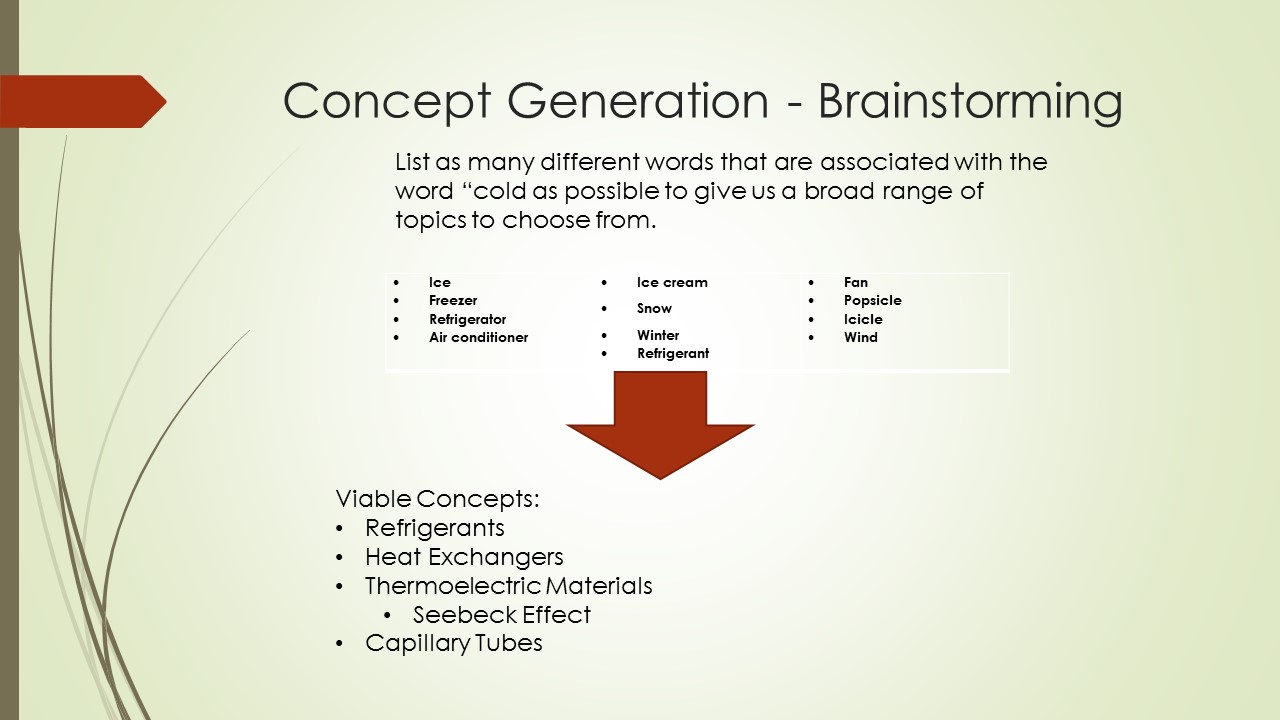

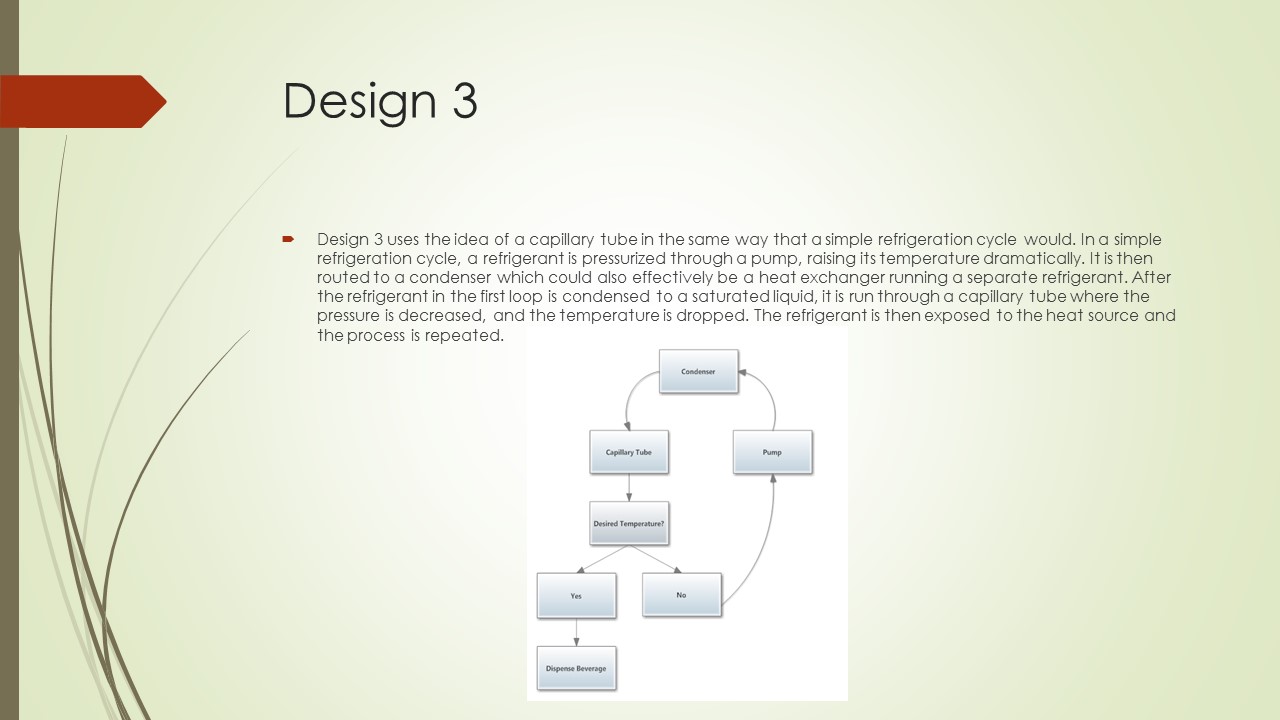

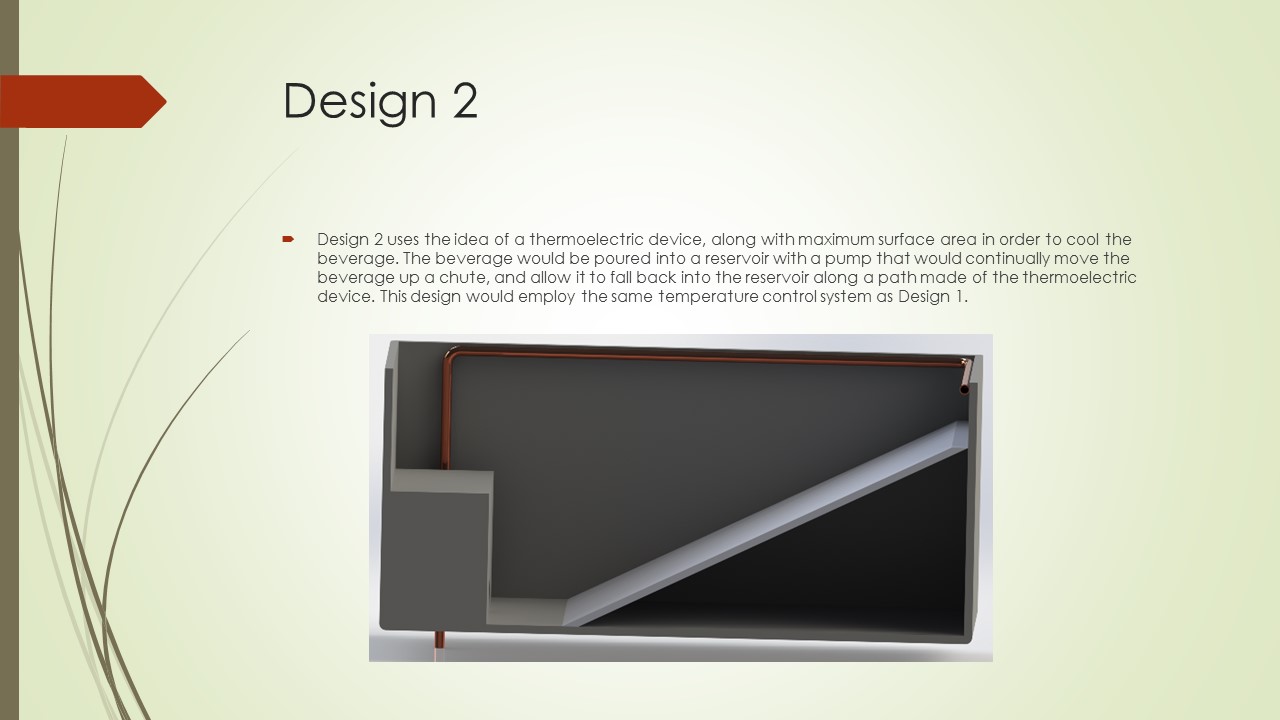

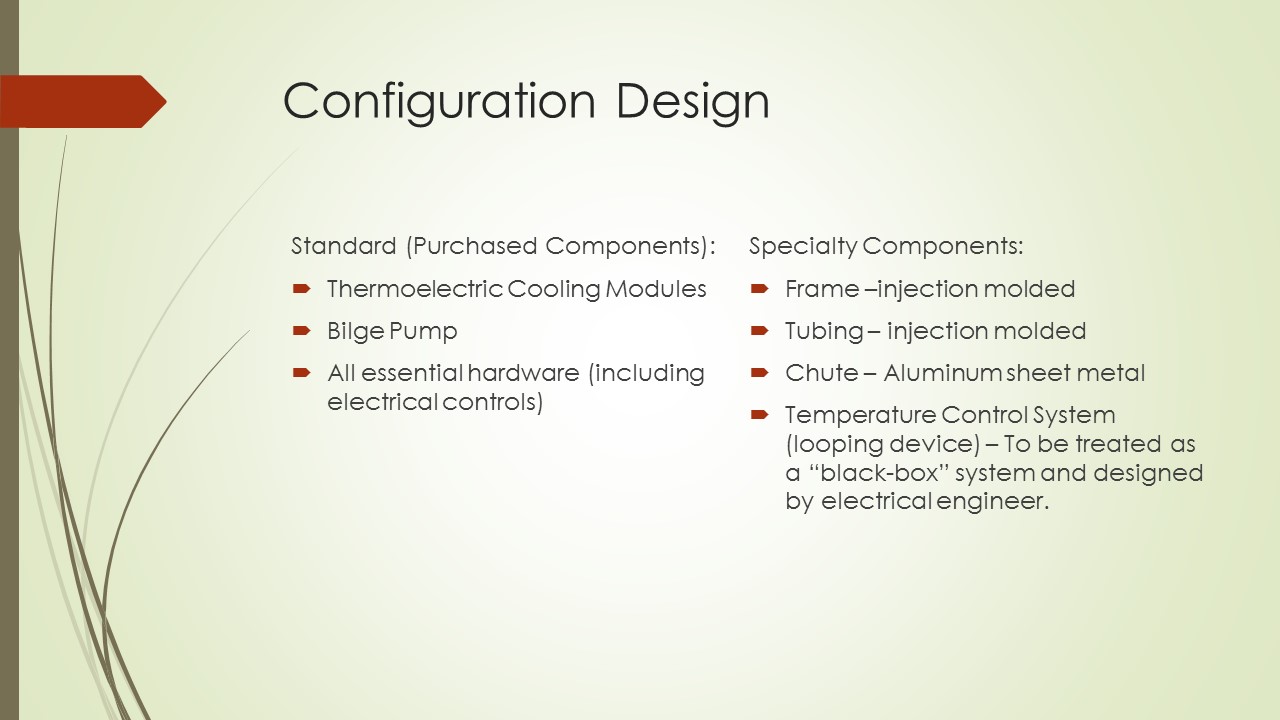

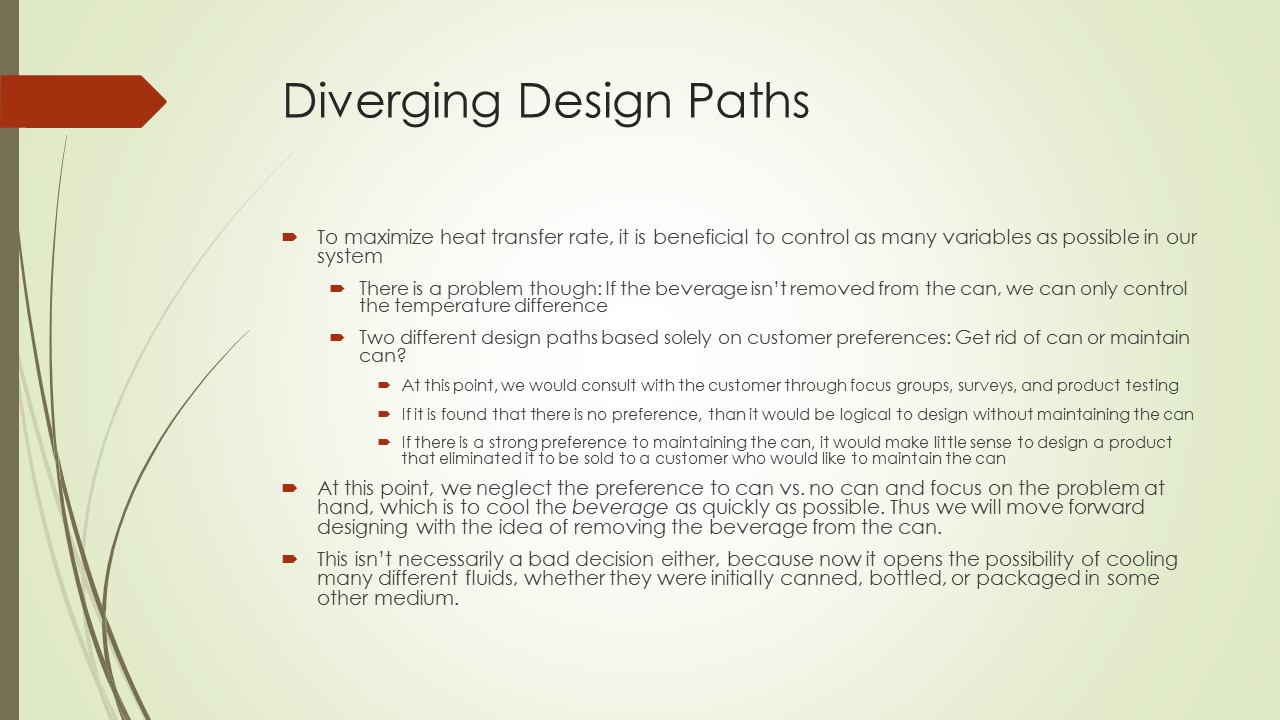

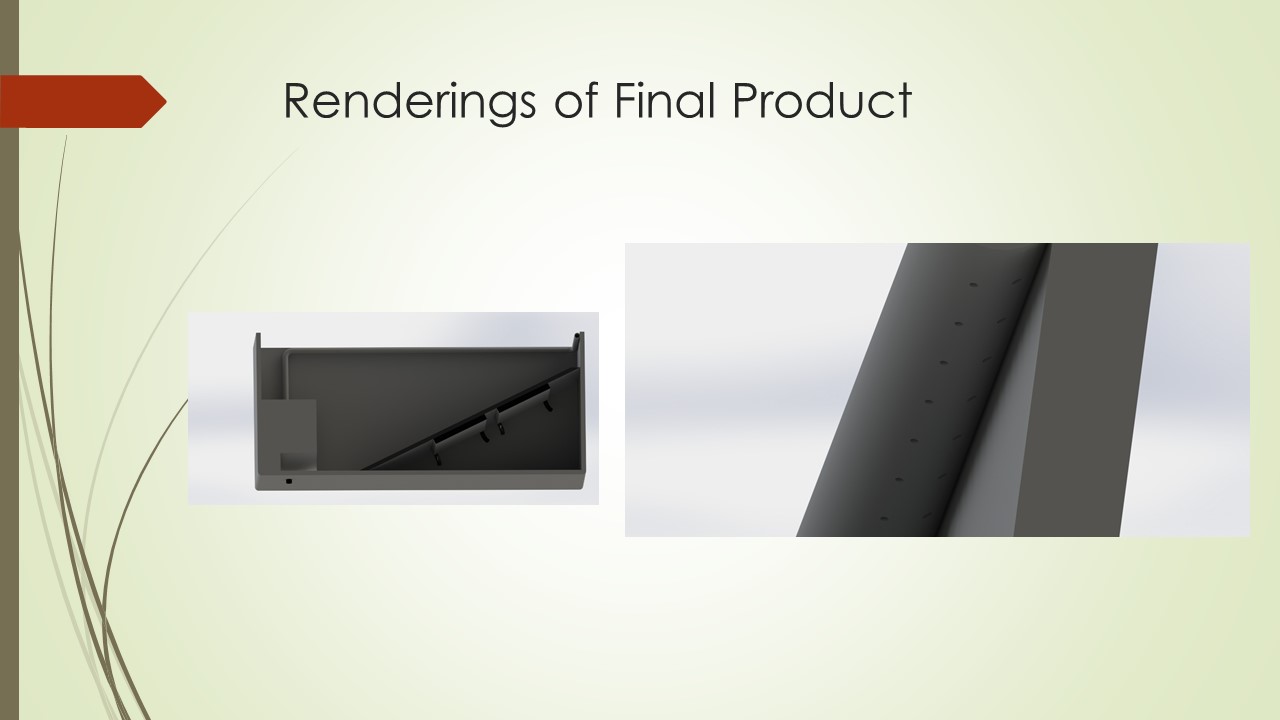

The slides shown above outline my process to choose and design the best available option. This class was taken prior to most Mechanical core curriculum being taken. As such, I recognize that there are flaws in the actual design concepts. This project is to be taken as an example of design concept execution, not technical proficiency.
